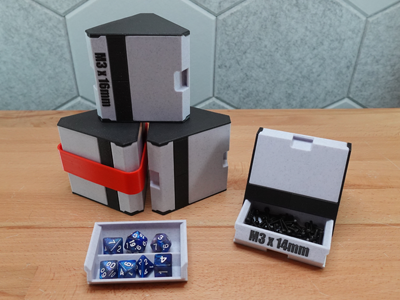

Portable Three-bin Dresser

A modular portable organizer with 3 magnetically secured drawers.

Customization

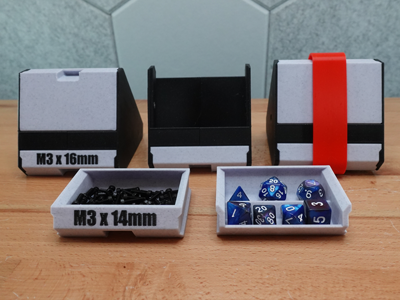

Bin Options

• Plain
• Segmented Square
• Segmented Long
• Deep

Core Options

• Default
• Bolt - uses an M3 socket head bolt and M3 nut instead of glue

Required Hardware

Requires 12 strong 6x3mm cylinder magnets

Printing

• No supports required.
• Use filament with good mechanical properties. Silk and matte filaments might be too brittle.

Assembly

• Glue magnets into bins. Exact orientation does not matter as long as you are consistent between bins.
• Glue magnets into the core.
• Orient so the bins are pulled toward the core.
• Glue both halves of the core together.
• Insert bins.
